EYEBOLT

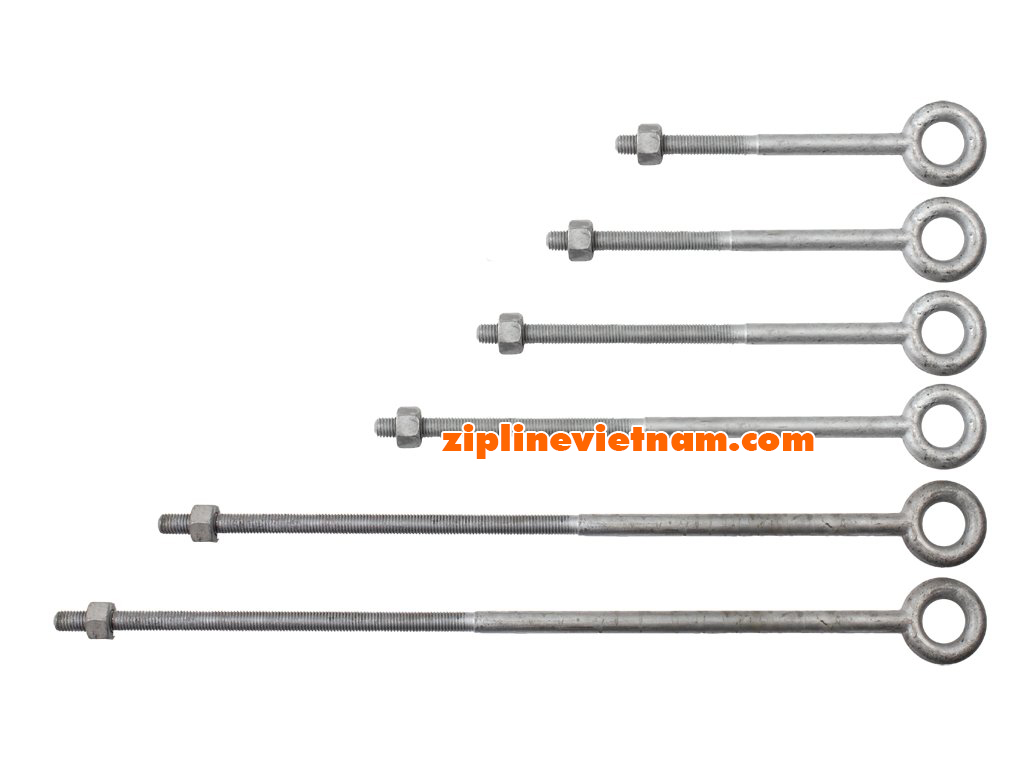

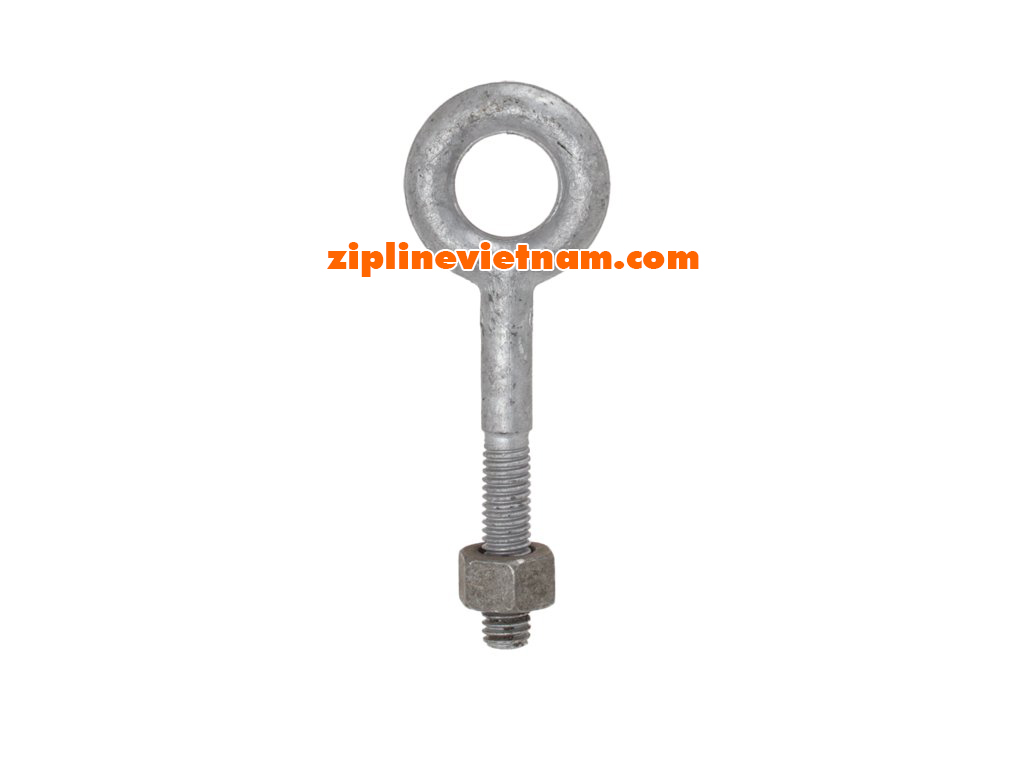

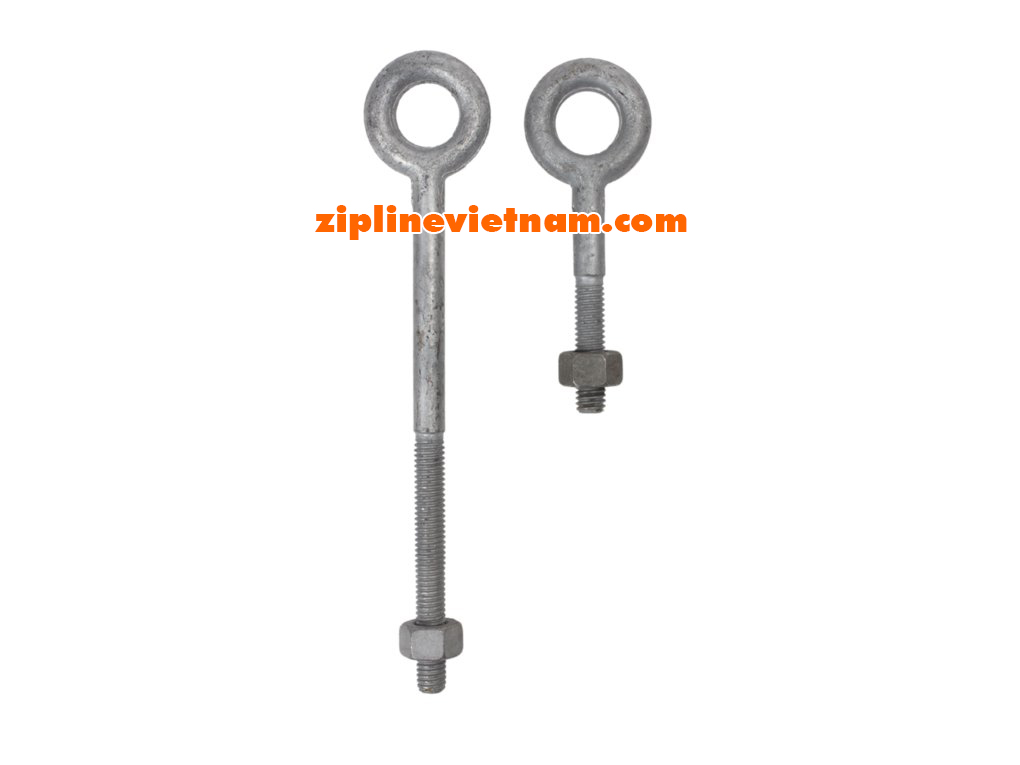

Galvanized Eyebolt. The shaft length is measured from the end of the bolt to the base of the eye (i.e. the advertised length is just the shaft, excluding the eye).
The threads extend half way down the shaft. For example a 10" eyebolt has threads 5" down the shaft.
Safe Working Load Limits
Gauge SWL
3/8" 800lbs
1/2" 2200lbs
5/8" 3500lbs
3/4" 5200lbs
7/8" 7200lbs
